Products Overview

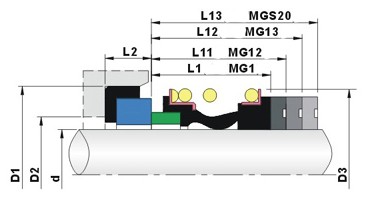

TMG1 Mechanical Seal

The TMG1 Mechanical Seal is a replacement for the Burgmann MG1 Seal / MG12  Seal / MG13 Seal / MGS20 Seal & G60 Stationary.


GRUNDFOS SEALS  •  MECHANICAL SEALS  •  PUMPS


Aesseal B02/B012/B013 seal

Flowserve Pac-Seal 190 / Pac-Seal 192/ Pac-Seal 193

Roten L3 / Roten L3k / Roten L3

Vulcan 19 / Vulcan 192/ Vulcan 193

Temperature: -20℃ to +120℃

Pressure: ≤1.2MPa

Speed: ≤10m/s

Stationary Ring: Ni-binder Tungsten Carbide, Silicon Carbide Reaction Bonded, Ceramic (Alumina), Silicon Carbide Sintered Pressureless

Rotary Ring: Resin Impregnated Carbon Graphite (Furan), Antimony Impreg, Carbon Graphite, Silicon Carbide Sintered Pressureless, Silicon Carbide Reaction Bonded

Secondary Seal: Fluorocarbon Rubber (Viton), Nitrile (NBR), Ethylene Propylene (EPDM)

Spring and Metal Parts: Stainless Steel

Cleans Water, Sewage Water, Oil and other moderately corrosive fluids.

TMG1 Mechanical Seal, Elmira Pump

TMG1 Mechanical Seal, Elmira Pump
